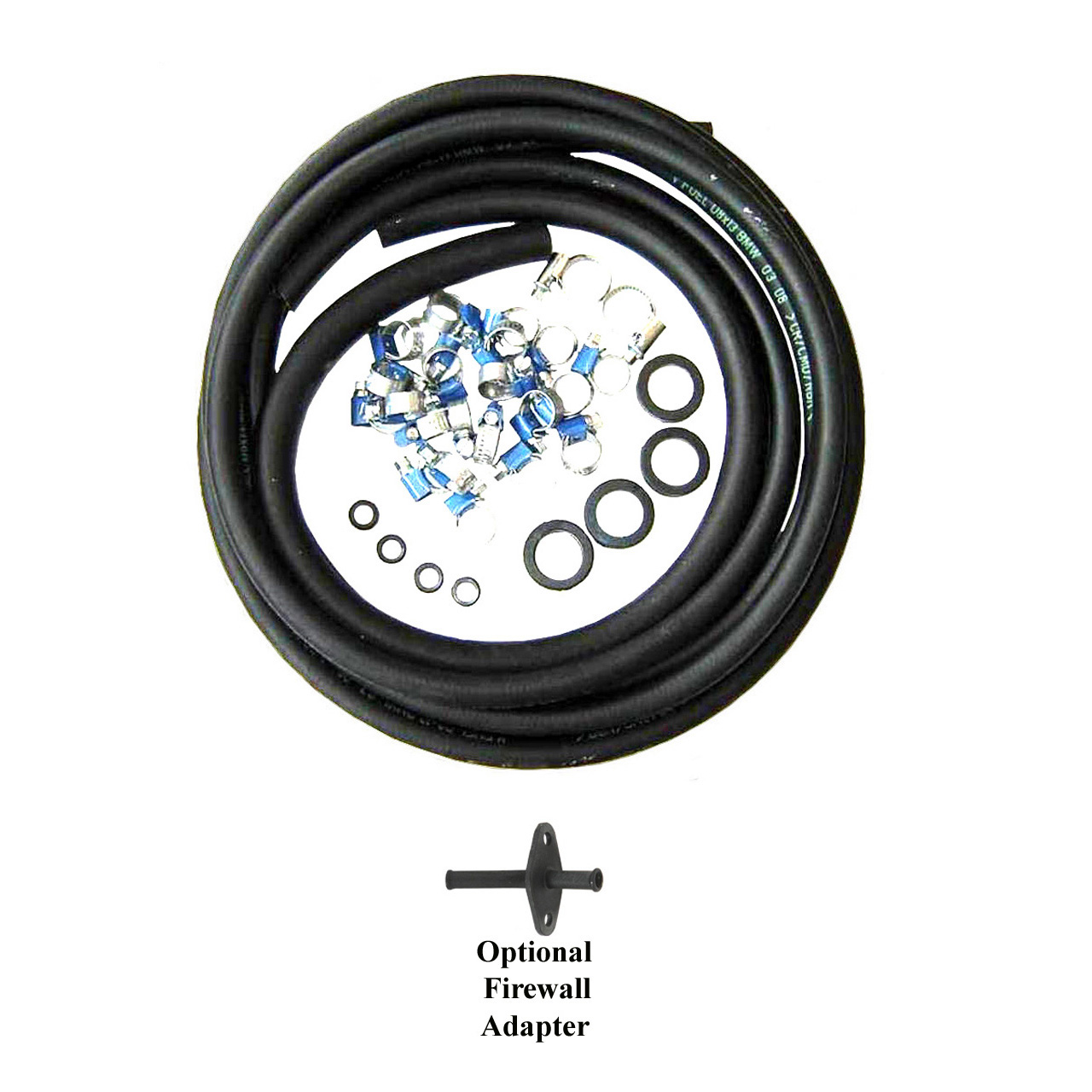

This fuel line kit will fit all years and all models and replaces all feed and return rubber fuel lines in the engine compartment, between the engine and the fuel tank, and at the fuel pump and filter. It also includes the upper and the lower fuel injector seals. New clamps are also included. This kit does not include the evaporative fuel lines above the gas tank as those are part of the fuel tank reseal kit. It contains 13 feet of 5/16" hose (30R14 rating rates the same as 30R9 with a new nylon interior barrier to prevent bio-diesel from soaking through), 2 feet of 1/2" hose, 22 7mm clamps, 2 12mm clamps. Plus 4 small and 4 large injector seals. Please note that since the fuel line needs to be cut into segments, your 4-meter length may be 2 segments that add up to 13 feet).
This kit will not include the rubber fuel line to replace the hard fuel line. If you wish to replace the hard fuel line, please purchase the hard plastic fuel line replacement kit.

NOTE: For SYNCRO models, it is recommended to get an additional 1 meter of the 5/16". There is a little more fuel line between the tank and the engine compartment on the Syncro models. You do NOT need the firewall fitting for Syncro models. Buying in kit form ensures you get all of the pieces you need to complete the job.
