Dual Horn And Relay Kit

Dual Horn And Relay Kit

Product code: 004523
Tired of getting no respect when you need to use your feeble Vanagon horn?  Force distracted drivers to notice you with our dual-horn kit! Features: German 110 decibel dual fanfare hor… Read more below
$99.95

Be in the loop

leave your email and we will let you know nonce product is back in stock

Dual Horn And Relay Kit

Dual Horn And Relay Kit

product code: 004523
Adding to cart… The item has been added

Tired of getting no respect when you need to use your feeble Vanagon horn?  Force distracted drivers to notice you with our dual-horn kit!

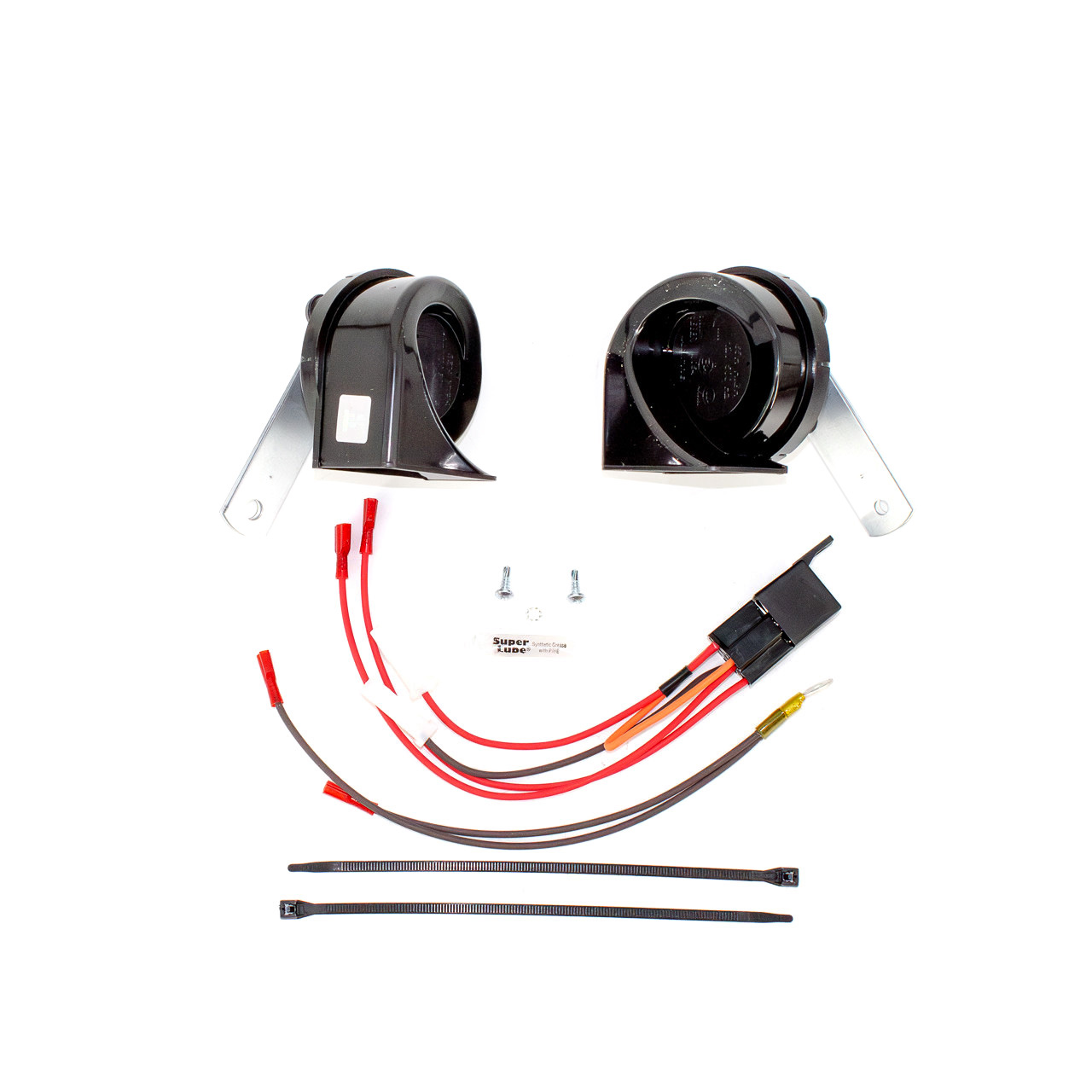

Features:

  • German 110 decibel dual fanfare horns - One high tone, one low - Loud!
  • Horn relay and plug and play wiring kit
  • All required installation hardware to install these bad boys in your van

Installation Notes:

  1. Slide under the front of your van and locate your stock horn.  (Emergency brake ON and keys removed from ignition please!!!)

  2. Remove the old horns and wires. Don't cut any wires.

  3. Mount the two new horns using the provided brackets

  4. The relay is mounted above the horns, out of direst weather, using one of the supplied self tapping screws and a star washer.

  5. The two brown ground wires - with the yellow eyelet from the horns - are secured to the body of the van using the other supplied self-tapping screw and star washer.

  6. Connect the brown/blue wire from the van harness to the brown wire coming from the relay.

  7. Connect the black/yellow wire from the van harness to the red wire coming from the relay.

Ref ID: RMW-9985101

  • Description

    Tired of getting no respect when you need to use your feeble Vanagon horn?  Force distracted drivers to notice you with our dual-horn kit!

    Features:

    • German 110 decibel dual fanfare horns - One high tone, one low - Loud!
    • Horn relay and plug and play wiring kit
    • All required installation hardware to install these bad boys in your van

    Installation Notes:

    1. Slide under the front of your van and locate your stock horn.  (Emergency brake ON and keys removed from ignition please!!!)

    2. Remove the old horns and wires. Don't cut any wires.

    3. Mount the two new horns using the provided brackets

    4. The relay is mounted above the horns, out of direst weather, using one of the supplied self tapping screws and a star washer.

    5. The two brown ground wires - with the yellow eyelet from the horns - are secured to the body of the van using the other supplied self-tapping screw and star washer.

    6. Connect the brown/blue wire from the van harness to the brown wire coming from the relay.

    7. Connect the black/yellow wire from the van harness to the red wire coming from the relay.

    Ref ID: RMW-9985101
