This is a high quality German engine gasket set for your Vanagon wasserboxer engine rebuild. The kit includes all seals and gaskets used during engine assembly and all gaskets and seals for components that touch the engine longblock.

Note:  This kit does not include the crankshaft pulley o-ring.

Note: Not all gaskets will be used when rebuilding a US-spec. Vanagon

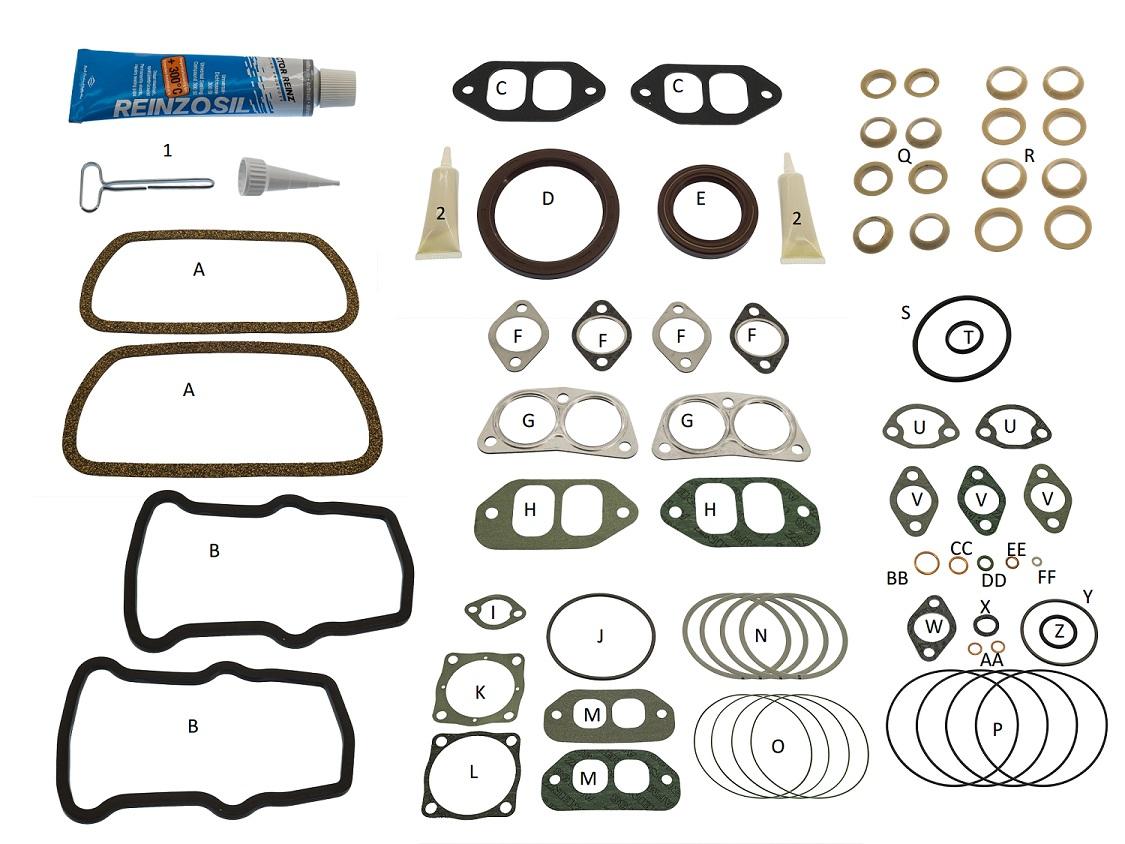

CONTENTS: (Many thanks to DaBaron for compiling this list!)

1 – Reinzosil – Anaerobic Gasket Maker

A -- Cork Valve Cover Gaskets (2)
B -- Rubber Cylinder Head Gaskets (2)
C -- Intake Manifold Gaskets (2)
D -- Rear Main Seal (Flywheel/Flexplate End)
E -- Front Main Seal (Pulley End)
F -- Exhaust Gasket (4)
G -- Carb Gasket (Not used on fuel injected models)
H -- Intake Gasket (Not used on fuel injected models)
I -- Coolant Flange Gasket
J -- Water Pump O-ring
K -- Oil Pump Gasket
L -- Oil Pump Cover Gasket
M -- Intake Gasket (Not used on fuel injected models)
N -- Cylinder Metal Top Rings (4)
O -- Top Cylinder O-ring (green) (4)
P -- Bottom Cylinder O-ring (black) (4)
Q -- Pushrod Tube Seal (Head side) (4)
R -- Pushrod Tube Seal (Case Side) (4)
S -- Flywheel\Flexplate o-ring
T --  Distributor O-ring (D shaped)
U -- Fuel Pump Gasket (Only one used on fuel injected models for cover plate)
V -- Coolant Gasket
W -- Oil Filler Tube Gasket
X -- Felt Pilot Bearing Gasket
Y -- Breather Tower O-ring
Z -- Thermostat Housing to 3&4 Cylinder Head
AA -- Cylinder Head Drain Plug Washer (2)
BB -- Oil Drain Plug Washer
CC -- Oil Pickup Tube Bolt Washer
DD -- Oil Dipstick Tube O-ring
EE – Oil Pickup Bracket Bolt
FF -- Fuel Pressure Test Port Screw

Ref ID: 025198009B
